Function

Draw a non-overlapping wordmatch dotplot of two sequences

Description

dotpath generates a dotplot from two input sequences. The dotplot is an intuitive graphical representation of the regions of similarity between two sequences. Sequence "words" of a user-specified length are compared and all exact word matches between the two sequences are recorded. The set of the longest possible but non-overlapping matches is identified. The two sequences are the axes of the rectangular dotplot. Wherever there is an exact matching word in the two sequences a line is plotted.

Algorithm

dotpath uses the same algorithm as diffseq and dottup for finding a minimal set of exact matches between two sequences. It finds all identical words of size -wordsize or greater in the two sequences. It then reduces the matches found to the minimal set of matches that do not overlap. This set is rendered as lines in the dotplot.

Usage

Here is a sample session with dotpath


% dotpath tembl:AF129756 tembl:BA000025 -word 20 -graph cps -overlaps
Draw a non-overlapping wordmatch dotplot of two sequences

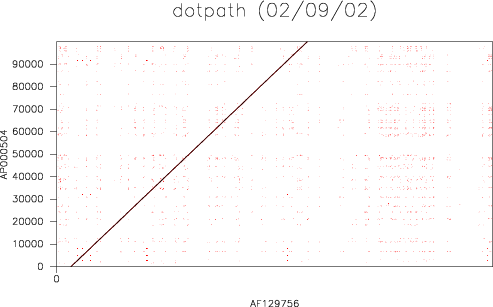

Created dotpath.ps

Go to the input files for this example
Go to the output files for this example

Command line arguments

   Standard (Mandatory) qualifiers:
  [-asequence]         sequence   Sequence filename and optional format, or
                                  reference (input USA)
  [-bsequence]         sequence   Sequence filename and optional format, or
                                  reference (input USA)
   -wordsize           integer    [4] Word size (Integer 2 or more)
   -graph              graph      [$EMBOSS_GRAPHICS value, or x11] Graph type
                                  (ps, hpgl, hp7470, hp7580, meta, cps, x11,
                                  tekt, tek, none, data, das, xterm, png, gif)

   Additional (Optional) qualifiers:
   -overlaps           boolean    [N] Displays the overlapping matches (in
                                  red) as well as the minimal set of
                                  non-overlapping matches
   -[no]boxit          boolean    [Y] Draw a box around dotplot

   Advanced (Unprompted) qualifiers: (none)
   Associated qualifiers:

   "-asequence" associated qualifiers
   -sbegin1            integer    Start of the sequence to be used
   -send1              integer    End of the sequence to be used
   -sreverse1          boolean    Reverse (if DNA)
   -sask1              boolean    Ask for begin/end/reverse
   -snucleotide1       boolean    Sequence is nucleotide
   -sprotein1          boolean    Sequence is protein
   -slower1            boolean    Make lower case
   -supper1            boolean    Make upper case
   -sformat1           string     Input sequence format
   -sdbname1           string     Database name
   -sid1               string     Entryname
   -ufo1               string     UFO features
   -fformat1           string     Features format
   -fopenfile1         string     Features file name

   "-bsequence" associated qualifiers
   -sbegin2            integer    Start of the sequence to be used
   -send2              integer    End of the sequence to be used
   -sreverse2          boolean    Reverse (if DNA)
   -sask2              boolean    Ask for begin/end/reverse
   -snucleotide2       boolean    Sequence is nucleotide
   -sprotein2          boolean    Sequence is protein
   -slower2            boolean    Make lower case
   -supper2            boolean    Make upper case
   -sformat2           string     Input sequence format
   -sdbname2           string     Database name
   -sid2               string     Entryname
   -ufo2               string     UFO features
   -fformat2           string     Features format
   -fopenfile2         string     Features file name

   "-graph" associated qualifiers
   -gprompt            boolean    Graph prompting
   -gdesc              string     Graph description
   -gtitle             string     Graph title
   -gsubtitle          string     Graph subtitle
   -gxtitle            string     Graph x axis title
   -gytitle            string     Graph y axis title
   -goutfile           string     Output file for non interactive displays
   -gdirectory         string     Output directory

   General qualifiers:
   -auto               boolean    Turn off prompts
   -stdout             boolean    Write first file to standard output
   -filter             boolean    Read first file from standard input, write
                                  first file to standard output
   -options            boolean    Prompt for standard and additional values
   -debug              boolean    Write debug output to program.dbg
   -verbose            boolean    Report some/full command line options
   -help               boolean    Report command line options. More
                                  information on associated and general
                                  qualifiers can be found with -help -verbose
   -warning            boolean    Report warnings
   -error              boolean    Report errors
   -fatal              boolean    Report fatal errors
   -die                boolean    Report dying program messages

Standard (Mandatory) qualifiers Allowed values Default
[-asequence]
(Parameter 1)
Sequence filename and optional format, or reference (input USA) Readable sequence Required
[-bsequence]
(Parameter 2)
Sequence filename and optional format, or reference (input USA) Readable sequence Required
-wordsize Word size Integer 2 or more 4
-graph Graph type EMBOSS has a list of known devices, including ps, hpgl, hp7470, hp7580, meta, cps, x11, tekt, tek, none, data, das, xterm, png, gif EMBOSS_GRAPHICS value, or x11
Additional (Optional) qualifiers Allowed values Default
-overlaps Displays the overlapping matches (in red) as well as the minimal set of non-overlapping matches Boolean value Yes/No No
-[no]boxit Draw a box around dotplot Boolean value Yes/No Yes
Advanced (Unprompted) qualifiers Allowed values Default
(none)

Input file format

Input files for usage example

'tembl:AF129756' is a sequence entry in the example nucleic acid database 'tembl'

Database entry: tembl:AF129756

ID   AF129756; SV 1; linear; genomic DNA; STD; HUM; 184666 BP.
XX
AC   AF129756;
XX
DT   12-MAR-1999 (Rel. 59, Created)
DT   14-NOV-2006 (Rel. 89, Last updated, Version 5)
XX
DE   Homo sapiens MSH55 gene, partial cds; and CLIC1, DDAH, G6b, G6c, G5b, G6d,
DE   G6e, G6f, BAT5, G5b, CSK2B, BAT4, G4, Apo M, BAT3, BAT2, AIF-1, 1C7, LST-1,
DE   LTB, TNF, and LTA genes, complete cds.
XX
KW   .
XX
OS   Homo sapiens (human)
OC   Eukaryota; Metazoa; Chordata; Craniata; Vertebrata; Euteleostomi; Mammalia;
OC   Eutheria; Euarchontoglires; Primates; Haplorrhini; Catarrhini; Hominidae;
OC   Homo.
XX
RN   [1]
RP   1-184666
RX   DOI; 10.1101/gr.1736803.
RX   PUBMED; 14656967.
RA   Xie T., Rowen L., Aguado B., Ahearn M.E., Madan A., Qin S., Campbell R.D.,
RA   Hood L.;
RT   "Analysis of the gene-dense major histocompatibility complex class III
RT   region and its comparison to mouse";
RL   Genome Res. 13(12):2621-2636(2003).
XX
RN   [2]
RP   1-184666
RA   Rowen L., Madan A., Qin S., Shaffer T., James R., Ratcliffe A., Abbasi N.,
RA   Dickhoff R., Loretz C., Madan A., Dors M., Young J., Lasky S., Hood L.;
RT   "Sequence of the human major histocompatibility complex class III region";
RL   Unpublished.
XX
RN   [3]
RP   1-184666
RA   Rowen L.;
RT   ;
RL   Submitted (22-FEB-1999) to the EMBL/GenBank/DDBJ databases.
RL   Department of Molecular Biotechnology, Box 357730 University of Washington,
RL   Seattle, WA 98195, USA
XX
RN   [4]
RP   1-184666
RA   Rowen L.;
RT   ;
RL   Submitted (28-OCT-1999) to the EMBL/GenBank/DDBJ databases.
RL   Multimegabase Sequencing Center, University of Washington, PO Box 357730,
RL   Seattle, WA 98195, USA


  [Part of this file has been deleted for brevity]

     aaaccagttt accaccactc ctaacactaa acttaaatct gactctaaat gtaagtccaa    181740
     tctgagccac aagcctaaag ttgaacttta tcctgcttta tgaattattc atccattcct    181800
     ccatttagtg agtatctgcg tgcctaacac atgctgggca ttgtcctaag gcaggaggga    181860
     catggaggca aagggatcag agaaggtacc agcacctgtg gagcttgtat tccagtgagg    181920
     ccagacggaa aagaaagaaa ctgaagaaga aattggtact atgagaaaat aagacaggct    181980
     gatgttgtaa gagtggcagg gagctacttt taaatacagt agtcagcaaa atcctctttg    182040
     agtgtttggg tggcactgga gctgagaccc aaatgacaaa aaatagtgac caggtaaaag    182100
     tttgggagca aagcatttca ggtaaaggga gcagctactg caaaggctgg aaggcggaac    182160
     caagctgggg gtgttgacga caaacagaag gccagtgtgg ctggagcaga gagagagact    182220
     gggaggcggg tgggagatga ggtcagagag gagggcaggg gccaggtcat gcagggccat    182280
     gcaagaaggg taaagcctct agatttcatc cagccacagg aagcctttaa aggtcgtcag    182340
     agtgtgtggt gcgtgcgtgt gtgtgtgtgt gtgtgtgtgt gttgcagggg agagaggggg    182400
     agggagagag agagagagag agagaagagg gaggtgagca gaggtgattg gatttttttt    182460
     tcttttgaca tggtgtcttg ctctgtggcc taggctggag tgcagtggca ccatcatagc    182520
     ccactgcaac ctcaaaacca tgggctcaag tcatccttcc acctcagctt cccaagtatc    182580
     taggactaca ggtgtgtgcc actgtgcctg gctaatttta aaaaatattt taaaattttt    182640
     gttgagacag ggtctatgct gctcaggctg gtctcgaact cctggtttca agtgatctgc    182700
     ccatcttggc ctcccaaagt ttttttttgt tagtttgaga ggcggtttcg ctcgttgccc    182760
     aggctggagt gcaatgactg atctcatctc actgcaacct ctgcctcctg ggttcaagcg    182820
     attctcctgc ttcagcctcc caagtagctg ggattacagg tgcatgccac cattcccggc    182880
     taattttttg tatttagtag agatggggtt tcaccatgtt agtcaggctg atctcaaact    182940
     cctgacctca ggtgatccgc ctgcctcagc ctcccaaagt tttgggatta caggtgtgag    183000
     ccaccatgct gggccagcct cccaaagttt tgggattaca ggcatgagtc accacactgg    183060
     ccctggattt tttttctttc ttttttttgg agacggagtc tcactctgtt gcccaggctg    183120
     gagtgcaatg gcgtaatctc agctcactgc aacctctgct gcccgggttc aaacgattct    183180
     cctgtcttag cctcctgagt agctgggatt ataggtgcat gccaccatgc ctggctaatt    183240
     tttgtacttt tagtagagaa agtacaccat cttggccagg ctggtctcga actcctgacc    183300
     tcaggtgatc cacttgcgtc ggcctcccaa agtgctggga ttacaggcgt gagacaccgc    183360
     acccagcctt tttttttttt tttcttttaa gacagaatcg ctctgtcacc caggctggag    183420
     tgcagtggca caatctcggc tcactgcaac ctctgcctcc caggtttaag caatccacct    183480
     atgtcagtct cccaagtagc tgggattata ggtgcatgtc accatgcctg gctaattttt    183540
     gtacttttag tatagaaagt acaccatgtt ggccaggctg gtcttgaact cctgacctca    183600
     agtgatccgc ctgcctcagc ctcccgaagt gctggaatta cagacatgtg ccactgcacc    183660
     cggcctggtt ttttttttct aagagatgga gtctcacttt tctgcccagg ttggagtgca    183720
     atggcaccat catagctcac tgcagccttc aactcttggc ctcaggcaat ccttgcacct    183780
     tagcctcgca gtgttgggat tacaggcatg agccactgag ccttgcctgg actttttttt    183840
     ttttttgaga tggcgtctcg ctctgttgcc caggttggag tgctacggca tgatcttggc    183900
     tcactgcaac ttccacctcc caggttcaag cgattctctt gcctcggccc cccgagtagc    183960
     tgggattaca ggcatgcgcc accgtgcctg gctaattttg gtatttttag tagagatagg    184020
     gtttcatcat gttgggcagg ctggtcttga actcctgacc tcgtgatcca cccacctcgg    184080
     cctcccaaag tgctgggatt ataggcatag ccaacgcgcc cagcctggac ttgtttttaa    184140
     aagatcactg tggctcctgt gtttaggctg gctggtagga gacaggtggc agtggcattg    184200
     atggtgaaga gaaaatagtg gcagccatgg agatggagag aagtagacaa gtttgggata    184260
     tattatacat tccaggggta gaaacaacag gactagatga tggattgatg ggtgggagat    184320
     gtagatactg ggagagaagc aggattctga tggatggaaa aactaaaaaa ttctattttg    184380
     ggtgtggtaa gtctaagtct attagacatg caagtagaga tgtcactggg cagatacaca    184440
     tctggatttc aggggcaagg tccaagctag agaaagaaac ctgggcatgg tcagcatgag    184500
     gatggtgttt aaagccatgg aacttatctt gtgcatccct ataagacccc tttgaggcac    184560
     ttgtttcccc tcacaatgga tgcagtgcat cttccattct gaattccaga ggcaacaacc    184620
     tcctgctcct agaagctaaa ctctccagac ttagtcttct gaattc                   184666
//

Database entry: tembl:BA000025

ID   BA000025; SV 2; linear; genomic DNA; STD; HUM; 2229817 BP.
XX
AC   BA000025; AP000502-AP000521;
XX
DT   09-DEC-2004 (Rel. 82, Created)
DT   17-JUN-2008 (Rel. 96, Last updated, Version 5)
XX
DE   Homo sapiens genomic DNA, chromosome 6p21.3, HLA Class I region.
XX
KW   .
XX
OS   Homo sapiens (human)
OC   Eukaryota; Metazoa; Chordata; Craniata; Vertebrata; Euteleostomi; Mammalia;
OC   Eutheria; Euarchontoglires; Primates; Haplorrhini; Catarrhini; Hominidae;
OC   Homo.
XX
RN   [1]
RP   1-2229817
RA   Hirakawa M., Yamaguchi H., Imai K., Shimada J.;
RT   ;
RL   Submitted (21-AUG-2001) to the EMBL/GenBank/DDBJ databases.
RL   Mika Hirakawa, Japan Science and Technology Corporation (JST), Advanced
RL   Databases Department; 5-3, Yonbancho, Chiyoda-ku, Tokyo 102-0081, Japan
RL   (E-mail:mika@tokyo.jst.go.jp, URL:http://www-alis.tokyo.jst.go.jp/,
RL   Tel:81-3-5214-8491, Fax:81-3-5214-8470)
XX
RN   [2]
RA   Shiina S., Tamiya G., Oka A., Inoko H.;
RT   "Homo sapiens 2,229,817bp genomic DNA of 6p21.3 HLA class I region";
RL   Unpublished.
XX
DR   EPD; EP11158; HS_TNF.
DR   EPD; EP11159; HS_LTA.
DR   EPD; EP73522; HS_HLA-B.
DR   EPD; EP73908; HS_GTF2H4.
DR   EPD; EP73940; HS_NEU1.
DR   EPD; EP74013; HS_VARS2.
DR   EPD; EP74203; HS_MRPS18B.
DR   EPD; EP74346; HS_HLA-E.
DR   EPD; EP74389; HS_BAT1.
DR   EPD; EP74485; HS_IER3.
DR   GDB; 11515913.
DR   GOA; P59942.
DR   HGNC; 20668; MCCD1.
DR   IMGT/HLA; HLA02802; V*01010102.
DR   RFAM; RF00994; mir-1255.
DR   UniProtKB/Swiss-Prot; P59942; MCCD1_HUMAN.
XX
CC   This sequence is conducted by Tokai University as a JST sequencing
CC   Team.


  [Part of this file has been deleted for brevity]

     ttggccccac cccagcatgt ctccaggttc ctctcagccc tggttccttt tggccctgca   2226900
     gtcacaatgg gcaacactgt gacgcaccct gtcctgtgtc acagtgtcat acactcaggc   2226960
     tcacattgcc cctaggccac ttgccagcca agggacatgg ccacattttg tgtcttctgc   2227020
     acctcagcct tgctttcaag tgcaggtgat gatggcaccc acgcagaaca aatgttattt   2227080
     gctatcttcg tcgagtttag tcatccaatt ttccaaccct cactgggcaa ggaagagtgt   2227140
     ggtttccacc aagaaggcag gatgtcagca gtcacagggg caaccaacag ggaaagccgc   2227200
     cggaaaatag accccacagg aagcacaggt gtccagtgga gatgggaacc ctgcagattt   2227260
     gaccgtcttt aagcagatta gagagattac cgttactaac aacttagcca taaaagttta   2227320
     ttagctattt tcaaaaagca taaaattatg taatataatt ttttttaaat ttccatcaat   2227380
     acaaaactaa tctgggcact gcaacttccg gtgggcaact gggataggcg gcatcatcag   2227440
     gaaggcgagc cctgccgtgc cccatgtgcc agtgccccag atggcggcag cctccccaga   2227500
     agcaccttgt atctcccctg cacagggcca gggtcccagc ttcccataca ccttctcctg   2227560
     ctttttcttt tctgtccttt cctttttcaa taaaccacct gcaaaaaggg aaaaccattc   2227620
     tgaggacaag aaacatgtca atgggaaata cacagttgcc agagggtaaa aggccctgtt   2227680
     cattctcatt gaaaagctca ggtatttctg ttaaagtctc tccttttact ttaggatgct   2227740
     gactcctgcg tccatctcaa cctgggcatc gtgccaccac cttcaagaag agaaaaacta   2227800
     agtagtgctt tgcaaagggg cagcagcatt tctcatttct gaccatgtca ggcacatggc   2227860
     catgcagatg agcaggtggg ggacacaggt gagtctccag acctgctctc ctcccacagt   2227920
     acattcttga gtctttttaa acagttgtga aaatgccaca gatgcaagca cctgtgggcc   2227980
     actcccatgg ggaccgttgc acaaggcagt gccactcatt ctcagaacct cctaccatgg   2228040
     gctatgctta gtgacccgag gccaagccaa ggaagacgcc agccacaggg tgccatcctc   2228100
     aggggcatgc tgccagcagg ggcaaagtta tccctagcaa caagatacag aaagaaagaa   2228160
     aaaaggaagg aaatgtagcc aatgggccgg ttcaggttct tgactttgcc acacaaaaga   2228220
     atttgagagc aagtccaaag taaaagtcag caagagaatt tattgcaaag tgaaagtaca   2228280
     ctctgacagc tgatcagagc agctgctcaa aagagagaca gtaccctccc ctcacgggag   2228340
     tcttacatga ttattcatga ataggtggga aggggtattg ttttaagcat gttctgtggt   2228400
     ctcttgaacg tgcatgcact gtggttgtac atatcagcac acacatctta cgtctcatta   2228460
     gcatcttaac ttccctctca gagttgtgtt tgctactatt gtaatgagca taggtcagcc   2228520
     caaggacact attcatgggt ttctgggctt cctcagatgt ggggatgcct cccttggctc   2228580
     ttctacctct ttgctgcagg atgttctaac cacaagccca ggatatggtt tgcgcactgt   2228640
     cgaacagctt gttctctcca tcaacctgac aagtctcttg tttcctttca agggaggctg   2228700
     tgaacaccct atctcactga cctcagaagg acagtacagc agtagccacc atgaccaaaa   2228760
     agatgattcc agaagtgcag gacaactccc tacccagagg ctgtggctgt gcagtaacac   2228820
     accaagaggg gagtccagct ggctctcagg gtgctcacta ccctcatctg ggggcctgga   2228880
     ggacgtcaat tcctgagaac gccacgttct agtgagtaga atgaactgag agatacacag   2228940
     caaagctcca catacttttc cttttctttg tgcccgcagt gttcttcatc agtgtgctct   2229000
     cgcttttcag ctactactgt tggctggctg gaaaaaatag aacaatagta aaaattagag   2229060
     accagtcttt ggtgatgaag agaaatattg gctacttcca gtattttcta gctttggtta   2229120
     tggttgcagt tttccagctc accttgtggg gatgaattca gaaaaaagtt acaaattgaa   2229180
     atgaacatgc cagaagtatt ggctcaaatc aacgttgtcc tattaagcca cttagtgaat   2229240
     caaaagaccg cttgttggac tgttaatctc ggtggccaga gaaaggagct gaagaaggtg   2229300
     ttgccagatc aggaacaaat aattacagcg gcaatagaaa atggaagacc acttgttcat   2229360
     aaccatttga ataagggcaa ggtgtatgga aacacattat gaactgatat tttcagtttt   2229420
     gtttgcaaga aaatgattaa taaggtgaaa taattgaagt atcacggaag atacattaaa   2229480
     aaaaaaaaaa gcctttgtac agtttgctgg agccacagat gtcctactcc agagcagaac   2229540
     aatgcctgaa tcttcagggt ccatttctgc cgcattcact agcaaccaca aatgtgactt   2229600
     aattttactt tggaaataat gcttacccat tgtgagatgc tgtaatatga accatcatta   2229660
     catgttaaca tggcacatgg aattttgagt gtctaagtta catttttaga gttgtttctt   2229720
     agtagccatg tgagtttcca ctccaaaaac acaagctaaa aacttgtttt gagtgaagga   2229780
     catctagggc aaatggtggc tgaaagtgaa tgagatc                            2229817
//

Output file format

In normal operation, a dotplot image is displayed.

With the -data qualifier a file of the positions of the matches in the minimal non-overlapping set of matches is output.

Output files for usage example

Graphics File: dotpath.ps

[dotpath results]

Notes

For similar sequences, dotpath provides a convenient way to find a path that aligns the two sequences well. It is not a true optimal path as produced by the dynamic programming algorithms used in water or needle, but for very closely related sequences it will produce the same result. In contast to full alignment, it works very quickly with very long sequences.

The entire set of matches found can be displayed with the -overlaps qualifier. This shows all matches in red, except for those in the minimal path (non-overlapping set) which are shown in black, as normal.

Using a longer word size will create a dottplot with relatively less noise; the matches are longer and therefore more likely to have biological meaning. Such runs will be much faster, but of course are less sensitive.

References

None

Warnings

If you give a small word size with a very large sequence you will run out of memory. If this happens, try again with a larger word size.

Diagnostic Error Messages

None

Exit status

It always exits with status 0.

Known bugs

None

See also

Program name Description
dotmatcher Draw a threshold dotplot of two sequences
dottup Displays a wordmatch dotplot of two sequences
polydot Draw dotplots for all-against-all comparison of a sequence set

This program is closely based on dottup with the addition of by default displaying only the minimal set of non-overlapping matches.

This program uses the same algorithm as diffseq for finding a minimal set of very good matches between two sequences. diffseq may be more convenient if you are looking at the differences between two nearly identical sequences.

Author(s)

Gary Williams (gwilliam © rfcgr.mrc.ac.uk)
MRC Rosalind Franklin Centre for Genomics Research Wellcome Trust Genome Campus, Hinxton, Cambridge, CB10 1SB, UK

History

Written 14 Aug 2000.

Target users

This program is intended to be used by everyone and everything, from naive users to embedded scripts.

Comments

None
