dottup



Wiki

The master copies of EMBOSS documentation are available at http://emboss.open-bio.org/wiki/Appdocs on the EMBOSS Wiki.

Please help by correcting and extending the Wiki pages.

Function

Displays a wordmatch dotplot of two sequences

Description

A dotplot is a graphical representation of the regions of similarity between two sequences.

The two sequences are placed on the axes of a rectangular image and (in the simplest forms of dotplot) wherever there is a similarity between the sequences a dot is placed on the image.

Where the two sequences have substantial regions of similarity, many dots align to form diagonal lines. It is therefore possible to see at a glance where there are local regions of similarity as these will have long diagonal lines. It is also easy to see other features such as repeats (which form parallel diagonal lines), and insertions or deletions (which form breaks or discontinuities in the diagonal lines).

dottup looks for places where words (tuples) of a specified length have an exact match in both sequences and draws a diagonal line over the position of these words. This is a fast, but not especially sensitive way of creating dotplots. It is an acceptable method for displaying regions of substantial similarity between two sequences.

Using a longer word (tuple) size displays less random noise, runs extremely quickly, but is less sensitive. Shorter word sizes are more sensitive to shorter or fragmentary regions of similarity, but also display more random points of similarity (noise) and runs slower.

Usage

Here is a sample session with dottup


% dottup tembl:j01636 tembl:v00294 -wordsize=6 -gtitle='v00294 vs j01636' -graph cps
Displays a wordmatch dotplot of two sequences

Created dottup.ps

Go to the input files for this example

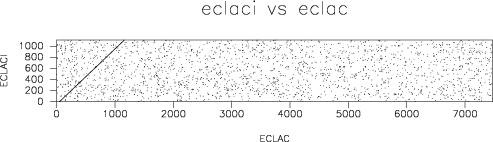

Go to the output files for this example

Command line arguments

Displays a wordmatch dotplot of two sequences
Version: EMBOSS:6.2.0

   Standard (Mandatory) qualifiers (* if not always prompted):
  [-asequence]         sequence   Sequence filename and optional format, or
                                  reference (input USA)
  [-bsequence]         sequence   Sequence filename and optional format, or
                                  reference (input USA)
   -wordsize           integer    [10] Word size (Integer 2 or more)
*  -graph              graph      [$EMBOSS_GRAPHICS value, or x11] Graph type
                                  (ps, hpgl, hp7470, hp7580, meta, cps, x11,
                                  tek, tekt, none, data, xterm, png, gif)
*  -xygraph            xygraph    [$EMBOSS_GRAPHICS value, or x11] Graph type
                                  (ps, hpgl, hp7470, hp7580, meta, cps, x11,
                                  tek, tekt, none, data, xterm, png, gif)

   Additional (Optional) qualifiers (* if not always prompted):
*  -[no]boxit          boolean    [Y] Draw a box around dotplot

   Advanced (Unprompted) qualifiers:
   -stretch            toggle     [N] Use non-proportional axes

   Associated qualifiers:

   "-asequence" associated qualifiers
   -sbegin1            integer    Start of the sequence to be used
   -send1              integer    End of the sequence to be used
   -sreverse1          boolean    Reverse (if DNA)
   -sask1              boolean    Ask for begin/end/reverse
   -snucleotide1       boolean    Sequence is nucleotide
   -sprotein1          boolean    Sequence is protein
   -slower1            boolean    Make lower case
   -supper1            boolean    Make upper case
   -sformat1           string     Input sequence format
   -sdbname1           string     Database name
   -sid1               string     Entryname
   -ufo1               string     UFO features
   -fformat1           string     Features format
   -fopenfile1         string     Features file name

   "-bsequence" associated qualifiers
   -sbegin2            integer    Start of the sequence to be used
   -send2              integer    End of the sequence to be used
   -sreverse2          boolean    Reverse (if DNA)
   -sask2              boolean    Ask for begin/end/reverse
   -snucleotide2       boolean    Sequence is nucleotide
   -sprotein2          boolean    Sequence is protein
   -slower2            boolean    Make lower case
   -supper2            boolean    Make upper case
   -sformat2           string     Input sequence format
   -sdbname2           string     Database name
   -sid2               string     Entryname
   -ufo2               string     UFO features
   -fformat2           string     Features format
   -fopenfile2         string     Features file name

   "-graph" associated qualifiers
   -gprompt            boolean    Graph prompting
   -gdesc              string     Graph description
   -gtitle             string     Graph title
   -gsubtitle          string     Graph subtitle
   -gxtitle            string     Graph x axis title
   -gytitle            string     Graph y axis title
   -goutfile           string     Output file for non interactive displays
   -gdirectory         string     Output directory

   "-xygraph" associated qualifiers
   -gprompt            boolean    Graph prompting
   -gdesc              string     Graph description
   -gtitle             string     Graph title
   -gsubtitle          string     Graph subtitle
   -gxtitle            string     Graph x axis title
   -gytitle            string     Graph y axis title
   -goutfile           string     Output file for non interactive displays
   -gdirectory         string     Output directory

   General qualifiers:
   -auto               boolean    Turn off prompts
   -stdout             boolean    Write first file to standard output
   -filter             boolean    Read first file from standard input, write
                                  first file to standard output
   -options            boolean    Prompt for standard and additional values
   -debug              boolean    Write debug output to program.dbg
   -verbose            boolean    Report some/full command line options
   -help               boolean    Report command line options and exit. More
                                  information on associated and general
                                  qualifiers can be found with -help -verbose
   -warning            boolean    Report warnings
   -error              boolean    Report errors
   -fatal              boolean    Report fatal errors
   -die                boolean    Report dying program messages
   -version            boolean    Report version number and exit

Qualifier Type Description Allowed values Default
Standard (Mandatory) qualifiers
[-asequence]
(Parameter 1)
sequence Sequence filename and optional format, or reference (input USA) Readable sequence Required
[-bsequence]
(Parameter 2)
sequence Sequence filename and optional format, or reference (input USA) Readable sequence Required
-wordsize integer Word size Integer 2 or more 10
-graph graph Graph type EMBOSS has a list of known devices, including ps, hpgl, hp7470, hp7580, meta, cps, x11, tek, tekt, none, data, xterm, png, gif EMBOSS_GRAPHICS value, or x11
-xygraph xygraph Graph type EMBOSS has a list of known devices, including ps, hpgl, hp7470, hp7580, meta, cps, x11, tek, tekt, none, data, xterm, png, gif EMBOSS_GRAPHICS value, or x11
Additional (Optional) qualifiers
-[no]boxit boolean Draw a box around dotplot Boolean value Yes/No Yes
Advanced (Unprompted) qualifiers
-stretch toggle Use non-proportional axes Toggle value Yes/No No
Associated qualifiers
"-asequence" associated sequence qualifiers
-sbegin1
-sbegin_asequence
integer Start of the sequence to be used Any integer value 0
-send1
-send_asequence
integer End of the sequence to be used Any integer value 0
-sreverse1
-sreverse_asequence
boolean Reverse (if DNA) Boolean value Yes/No N
-sask1
-sask_asequence
boolean Ask for begin/end/reverse Boolean value Yes/No N
-snucleotide1
-snucleotide_asequence
boolean Sequence is nucleotide Boolean value Yes/No N
-sprotein1
-sprotein_asequence
boolean Sequence is protein Boolean value Yes/No N
-slower1
-slower_asequence
boolean Make lower case Boolean value Yes/No N
-supper1
-supper_asequence
boolean Make upper case Boolean value Yes/No N
-sformat1
-sformat_asequence
string Input sequence format Any string
-sdbname1
-sdbname_asequence
string Database name Any string
-sid1
-sid_asequence
string Entryname Any string
-ufo1
-ufo_asequence
string UFO features Any string
-fformat1
-fformat_asequence
string Features format Any string
-fopenfile1
-fopenfile_asequence
string Features file name Any string
"-bsequence" associated sequence qualifiers
-sbegin2
-sbegin_bsequence
integer Start of the sequence to be used Any integer value 0
-send2
-send_bsequence
integer End of the sequence to be used Any integer value 0
-sreverse2
-sreverse_bsequence
boolean Reverse (if DNA) Boolean value Yes/No N
-sask2
-sask_bsequence
boolean Ask for begin/end/reverse Boolean value Yes/No N
-snucleotide2
-snucleotide_bsequence
boolean Sequence is nucleotide Boolean value Yes/No N
-sprotein2
-sprotein_bsequence
boolean Sequence is protein Boolean value Yes/No N
-slower2
-slower_bsequence
boolean Make lower case Boolean value Yes/No N
-supper2
-supper_bsequence
boolean Make upper case Boolean value Yes/No N
-sformat2
-sformat_bsequence
string Input sequence format Any string
-sdbname2
-sdbname_bsequence
string Database name Any string
-sid2
-sid_bsequence
string Entryname Any string
-ufo2
-ufo_bsequence
string UFO features Any string
-fformat2
-fformat_bsequence
string Features format Any string
-fopenfile2
-fopenfile_bsequence
string Features file name Any string
"-graph" associated graph qualifiers
-gprompt boolean Graph prompting Boolean value Yes/No N
-gdesc string Graph description Any string
-gtitle string Graph title Any string Dottup: $(asequence.usa) vs $(bsequence.usa)
-gsubtitle string Graph subtitle Any string
-gxtitle string Graph x axis title Any string $(bsequence.name)
-gytitle string Graph y axis title Any string $(asequence.name)
-goutfile string Output file for non interactive displays Any string
-gdirectory string Output directory Any string
"-xygraph" associated xygraph qualifiers
-gprompt boolean Graph prompting Boolean value Yes/No N
-gdesc string Graph description Any string
-gtitle string Graph title Any string Dottup (stretched): $(asequence.usa) vs $(bsequence.usa)
-gsubtitle string Graph subtitle Any string
-gxtitle string Graph x axis title Any string
-gytitle string Graph y axis title Any string
-goutfile string Output file for non interactive displays Any string
-gdirectory string Output directory Any string
General qualifiers
-auto boolean Turn off prompts Boolean value Yes/No N
-stdout boolean Write first file to standard output Boolean value Yes/No N
-filter boolean Read first file from standard input, write first file to standard output Boolean value Yes/No N
-options boolean Prompt for standard and additional values Boolean value Yes/No N
-debug boolean Write debug output to program.dbg Boolean value Yes/No N
-verbose boolean Report some/full command line options Boolean value Yes/No Y
-help boolean Report command line options and exit. More information on associated and general qualifiers can be found with -help -verbose Boolean value Yes/No N
-warning boolean Report warnings Boolean value Yes/No Y
-error boolean Report errors Boolean value Yes/No Y
-fatal boolean Report fatal errors Boolean value Yes/No Y
-die boolean Report dying program messages Boolean value Yes/No Y
-version boolean Report version number and exit Boolean value Yes/No N

Input file format

Any two sequence USAs of the same type (DNA or protein).

Input files for usage example

'tembl:j01636' is a sequence entry in the example nucleic acid database 'tembl'

Database entry: tembl:j01636

ID   J01636; SV 1; linear; genomic DNA; STD; PRO; 7477 BP.
XX
AC   J01636; J01637; K01483; K01793;
XX
DT   30-NOV-1990 (Rel. 26, Created)
DT   09-SEP-2004 (Rel. 81, Last updated, Version 8)
XX
DE   E.coli lactose operon with lacI, lacZ, lacY and lacA genes.
XX
KW   acetyltransferase; beta-D-galactosidase; galactosidase; lac operon;
KW   lac repressor protein; lacA gene; lacI gene; lactose permease; lacY gene;
KW   lacZ gene; mutagenesis; palindrome; promoter region;
KW   thiogalactoside acetyltransferase.
XX
OS   Escherichia coli
OC   Bacteria; Proteobacteria; Gammaproteobacteria; Enterobacteriales;
OC   Enterobacteriaceae; Escherichia.
XX
RN   [1]
RP   1243-1266
RX   DOI; 10.1073/pnas.70.12.3581.
RX   PUBMED; 4587255.
RA   Gilbert W., Maxam A.;
RT   "The nucleotide sequence of the lac operator";
RL   Proc. Natl. Acad. Sci. U.S.A. 70(12):3581-3584(1973).
XX
RN   [2]
RP   1246-1308
RX   DOI; 10.1073/pnas.70.12.3585.
RX   PUBMED; 4587256.
RA   Maizels N.M.;
RT   "The nucleotide sequence of the lactose messenger ribonucleic acid
RT   transcribed from the UV5 promoter mutant of Escherichia coli";
RL   Proc. Natl. Acad. Sci. U.S.A. 70(12):3585-3589(1973).
XX
RN   [3]
RX   PUBMED; 4598642.
RA   Gilbert W., Maizels N., Maxam A.;
RT   "Sequences of controlling regions of the lactose operon";
RL   Cold Spring Harb. Symp. Quant. Biol. 38:845-855(1974).
XX
RN   [4]
RA   Gilbert W., Gralla J., Majors A.J., Maxam A.;
RT   "Lactose operator sequences and the action of lac repressor";
RL   (in) Sund H., Blauer G. (Eds.);
RL   PROTEIN-LIGAND INTERACTIONS:193-207;
RL   Walter de Gruyter, New York (1975)
XX
RN   [5]
RP   1146-1282


  [Part of this file has been deleted for brevity]

     cgatttggct acatgacatc aaccatatca gcaaaagtga tacgggtatt atttttgccg      4560
     ctatttctct gttctcgcta ttattccaac cgctgtttgg tctgctttct gacaaactcg      4620
     ggctgcgcaa atacctgctg tggattatta ccggcatgtt agtgatgttt gcgccgttct      4680
     ttatttttat cttcgggcca ctgttacaat acaacatttt agtaggatcg attgttggtg      4740
     gtatttatct aggcttttgt tttaacgccg gtgcgccagc agtagaggca tttattgaga      4800
     aagtcagccg tcgcagtaat ttcgaatttg gtcgcgcgcg gatgtttggc tgtgttggct      4860
     gggcgctgtg tgcctcgatt gtcggcatca tgttcaccat caataatcag tttgttttct      4920
     ggctgggctc tggctgtgca ctcatcctcg ccgttttact ctttttcgcc aaaacggatg      4980
     cgccctcttc tgccacggtt gccaatgcgg taggtgccaa ccattcggca tttagcctta      5040
     agctggcact ggaactgttc agacagccaa aactgtggtt tttgtcactg tatgttattg      5100
     gcgtttcctg cacctacgat gtttttgacc aacagtttgc taatttcttt acttcgttct      5160
     ttgctaccgg tgaacagggt acgcgggtat ttggctacgt aacgacaatg ggcgaattac      5220
     ttaacgcctc gattatgttc tttgcgccac tgatcattaa tcgcatcggt gggaaaaacg      5280
     ccctgctgct ggctggcact attatgtctg tacgtattat tggctcatcg ttcgccacct      5340
     cagcgctgga agtggttatt ctgaaaacgc tgcatatgtt tgaagtaccg ttcctgctgg      5400
     tgggctgctt taaatatatt accagccagt ttgaagtgcg tttttcagcg acgatttatc      5460
     tggtctgttt ctgcttcttt aagcaactgg cgatgatttt tatgtctgta ctggcgggca      5520
     atatgtatga aagcatcggt ttccagggcg cttatctggt gctgggtctg gtggcgctgg      5580
     gcttcacctt aatttccgtg ttcacgctta gcggccccgg cccgctttcc ctgctgcgtc      5640
     gtcaggtgaa tgaagtcgct taagcaatca atgtcggatg cggcgcgacg cttatccgac      5700
     caacatatca taacggagtg atcgcattga acatgccaat gaccgaaaga ataagagcag      5760
     gcaagctatt taccgatatg tgcgaaggct taccggaaaa aagacttcgt gggaaaacgt      5820
     taatgtatga gtttaatcac tcgcatccat cagaagttga aaaaagagaa agcctgatta      5880
     aagaaatgtt tgccacggta ggggaaaacg cctgggtaga accgcctgtc tatttctctt      5940
     acggttccaa catccatata ggccgcaatt tttatgcaaa tttcaattta accattgtcg      6000
     atgactacac ggtaacaatc ggtgataacg tactgattgc acccaacgtt actctttccg      6060
     ttacgggaca ccctgtacac catgaattga gaaaaaacgg cgagatgtac tcttttccga      6120
     taacgattgg caataacgtc tggatcggaa gtcatgtggt tattaatcca ggcgtcacca      6180
     tcggggataa ttctgttatt ggcgcgggta gtatcgtcac aaaagacatt ccaccaaacg      6240
     tcgtggcggc tggcgttcct tgtcgggtta ttcgcgaaat aaacgaccgg gataagcact      6300
     attatttcaa agattataaa gttgaatcgt cagtttaaat tataaaaatt gcctgatacg      6360
     ctgcgcttat caggcctaca agttcagcga tctacattag ccgcatccgg catgaacaaa      6420
     gcgcaggaac aagcgtcgca tcatgcctct ttgacccaca gctgcggaaa acgtactggt      6480
     gcaaaacgca gggttatgat catcagccca acgacgcaca gcgcatgaaa tgcccagtcc      6540
     atcaggtaat tgccgctgat actacgcagc acgccagaaa accacggggc aagcccggcg      6600
     atgataaaac cgattccctg cataaacgcc accagcttgc cagcaatagc cggttgcaca      6660
     gagtgatcga gcgccagcag caaacagagc ggaaacgcgc cgcccagacc taacccacac      6720
     accatcgccc acaataccgg caattgcatc ggcagccaga taaagccgca gaaccccacc      6780
     agttgtaaca ccagcgccag cattaacagt ttgcgccgat cctgatggcg agccatagca      6840
     ggcatcagca aagctcctgc ggcttgccca agcgtcatca atgccagtaa ggaaccgctg      6900
     tactgcgcgc tggcaccaat ctcaatatag aaagcgggta accaggcaat caggctggcg      6960
     taaccgccgt taatcagacc gaagtaaaca cccagcgtcc acgcgcgggg agtgaatacc      7020
     acgcgaaccg gagtggttgt tgtcttgtgg gaagaggcga cctcgcgggc gctttgccac      7080
     caccaggcaa agagcgcaac aacggcaggc agcgccacca ggcgagtgtt tgataccagg      7140
     tttcgctatg ttgaactaac cagggcgtta tggcggcacc aagcccaccg ccgcccatca      7200
     gagccgcgga ccacagcccc atcaccagtg gcgtgcgctg ctgaaaccgc cgtttaatca      7260
     ccgaagcatc accgcctgaa tgatgccgat ccccacccca ccaagcagtg cgctgctaag      7320
     cagcagcgca ctttgcgggt aaagctcacg catcaatgca ccgacggcaa tcagcaacag      7380
     actgatggcg acactgcgac gttcgctgac atgctgatga agccagcttc cggccagcgc      7440
     cagcccgccc atggtaacca ccggcagagc ggtcgac                               7477
//

Database entry: tembl:v00294

ID   V00294; SV 1; linear; genomic DNA; STD; PRO; 1113 BP.
XX
AC   V00294;
XX
DT   09-JUN-1982 (Rel. 01, Created)
DT   10-FEB-1999 (Rel. 58, Last updated, Version 2)
XX
DE   E. coli laci gene (codes for the lac repressor).
XX
KW   DNA binding protein; repressor.
XX
OS   Escherichia coli
OC   Bacteria; Proteobacteria; Gammaproteobacteria; Enterobacteriales;
OC   Enterobacteriaceae; Escherichia.
XX
RN   [1]
RP   1-1113
RX   DOI; 10.1038/274765a0.
RX   PUBMED; 355891.
RA   Farabaugh P.J.;
RT   "Sequence of the lacI gene";
RL   Nature 274(5673):765-769(1978).
XX
CC   KST ECO.LACI
XX
FH   Key             Location/Qualifiers
FH
FT   source          1..1113
FT                   /organism="Escherichia coli"
FT                   /mol_type="genomic DNA"
FT                   /db_xref="taxon:562"
FT   CDS             31..1113
FT                   /transl_table=11
FT                   /note="reading frame"
FT                   /db_xref="GOA:P03023"
FT                   /db_xref="InterPro:IPR001761"
FT                   /db_xref="PDB:3EDC"
FT                   /db_xref="UniProtKB/Swiss-Prot:P03023"
FT                   /protein_id="CAA23569.1"
FT                   /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
FT                   NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
FT                   EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
FT                   EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
FT                   MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
FT                   YIPPSTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
FT                   ALADSLMQLARQVSRLESGQ"
XX
SQ   Sequence 1113 BP; 249 A; 304 C; 322 G; 238 T; 0 other;
     ccggaagaga gtcaattcag ggtggtgaat gtgaaaccag taacgttata cgatgtcgca        60
     gagtatgccg gtgtctctta tcagaccgtt tcccgcgtgg tgaaccaggc cagccacgtt       120
     tctgcgaaaa cgcgggaaaa agtggaagcg gcgatggcgg agctgaatta cattcccaac       180
     cgcgtggcac aacaactggc gggcaaacag tcgttgctga ttggcgttgc cacctccagt       240
     ctggccctgc acgcgccgtc gcaaattgtc gcggcgatta aatctcgcgc cgatcaactg       300
     ggtgccagcg tggtggtgtc gatggtagaa cgaagcggcg tcgaagcctg taaagcggcg       360
     gtgcacaatc ttctcgcgca acgcgtcagt gggctgatca ttaactatcc gctggatgac       420
     caggatgcca ttgctgtgga agctgcctgc actaatgttc cggcgttatt tcttgatgtc       480
     tctgaccaga cacccatcaa cagtattatt ttctcccatg aagacggtac gcgactgggc       540
     gtggagcatc tggtcgcatt gggtcaccag caaatcgcgc tgttagcggg cccattaagt       600
     tctgtctcgg cgcgtctgcg tctggctggc tggcataaat atctcactcg caatcaaatt       660
     cagccgatag cggaacggga aggcgactgg agtgccatgt ccggttttca acaaaccatg       720
     caaatgctga atgagggcat cgttcccact gcgatgctgg ttgccaacga tcagatggcg       780
     ctgggcgcaa tgcgcgccat taccgagtcc gggctgcgcg ttggtgcgga tatctcggta       840
     gtgggatacg acgataccga agacagctca tgttatatcc cgccgtcaac caccatcaaa       900
     caggattttc gcctgctggg gcaaaccagc gtggaccgct tgctgcaact ctctcagggc       960
     caggcggtga agggcaatca gctgttgccc gtctcactgg tgaaaagaaa aaccaccctg      1020
     gcgcccaata cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca      1080
     cgacaggttt cccgactgga aagcgggcag tga                                   1113
//

Output file format

An image is output to the requested output device.

Output files for usage example

Graphics File: dottup.ps

[dottup results]

Data files

None.

Notes

None.

References

None.

Warnings

None.

Diagnostic Error Messages

None.

Exit status

0 upon successful completion.

Known bugs

None.

See also

Program name Description
dotmatcher Draw a threshold dotplot of two sequences
dotpath Draw a non-overlapping wordmatch dotplot of two sequences
polydot Draw dotplots for all-against-all comparison of a sequence set

dotmatcher, by comparison, moves a window of specified length up each diagonal and displays a line over the window if the sum of the comparisons (using a substitution matrix) exceeds a threshold. It is slower but much more sensitive.

Author(s)

Ian Longden (il © sanger.ac.uk)
Sanger Institute, Wellcome Trust Genome Campus, Hinxton, Cambridge, CB10 1SA, UK.

History

Completed 24th March 1999.

Target users

This program is intended to be used by everyone and everything, from naive users to embedded scripts.

Comments

None
